Need a Quote or Custom Configuration?
Contact SUN-CART for pricing, delivery options, custom colors, logo branding and fleet orders for your market.

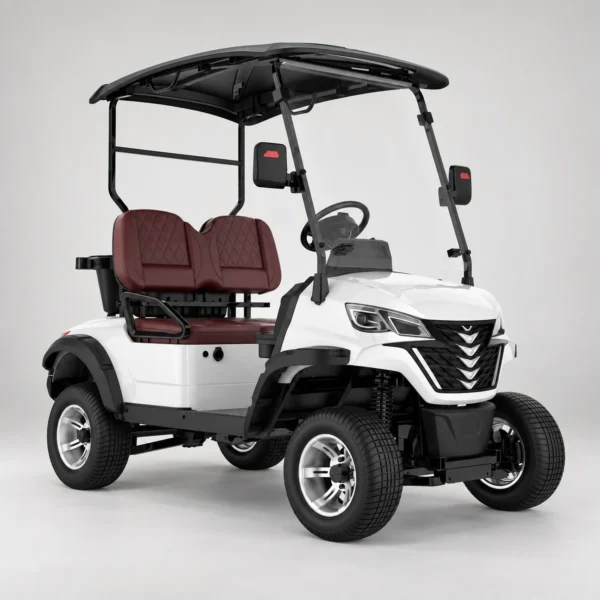

LSV 2 Seater Electric Golf Cart for Resorts, Communities & Private Properties
The SUN-CART LSV ECO 2+0 (SC-201LSV) is a compact 2 seater electric golf cart with street tires, designed for quiet and efficient short-distance transport. Its true 2+0 layout provides one forward-facing driver seat and one forward-facing passenger seat, making it a practical choice for resorts, golf facilities, gated communities, campuses, villas, estates and managed private properties.
The catalog-specified standard configuration combines a 48V 108Ah battery, a USA Bigturn 48V/350A controller and a USA Bigturn 48V/4kW motor. It is specified for up to 80 km (approximately 50 miles) of driving range at full load, with a configurable maximum speed of 25–45 km/h.

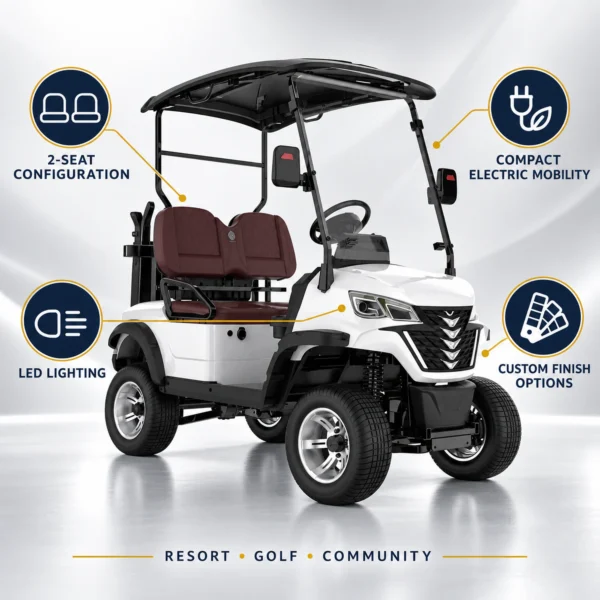

Why Choose the LSV ECO 2+0?
Compact 2+0 Seating Layout
With two forward-facing seats and an overall size of 2350 × 1150 × 1870 mm, the SC-201LSV offers a space-efficient option for locations where easy movement and parking matter. Its specified turning radius is ≤ 4.2 m.
Lithium-Powered Electric Drive
The standard catalog specification uses a 48V 108Ah battery paired with a 48V 4kW electric motor. Charging time is specified at 8–10 hours.
Street Tire Configuration
This LSV ECO golf cart uses 12-inch wheels with 215/35-12 street tires, plus a hydraulic front-disc and rear-drum brake system for controlled operation in suitable managed environments.
Built for Everyday Property Mobility
The LSV ECO 2+0 is suitable for golf courses and private clubs, resorts and hotels, gated communities, campuses, villas, estates and other short-distance passenger transport applications. Select body colors, logo branding and application-specific equipment can be discussed before order confirmation.
SC-201LSV Technical Specifications
| Model | SC-201LSV |
|---|---|
| Series | LSV ECO Series |
| Seating Configuration | 2+0 / 2 Passengers |
| Voltage | 48V |
| Controller | USA Bigturn brand, 48V/350A |
| Motor | USA Bigturn brand, 48V/4kW |
| Battery | 48V 108Ah |
| Charging Time | 8–10 hours |
| Driving Range | Up to 80 km / 50 miles (catalog-specified full load) |
| Maximum Speed | 25–45 km/h |
| Overall Dimensions | 2350 × 1150 × 1870 mm |
| Wheelbase | 1680 mm |
| Front / Rear Track | 960 / 980 mm |
| Turning Radius | ≤ 4.2 m |
| Braking Distance | ≤ 3 m |
| Maximum Gradeability | 25% (full load) |
| Net / Gross Weight | 400 / 465 kg |
| Ground Clearance | 150 mm |
| Wheel Size | 12 inch |
| Tire Size | 215/35-12 street tire |
| Brake System | Hydraulic front disc + rear drum |
Performance note: Published figures refer to the catalog-specified configuration and test conditions. Actual range, speed, gradeability and braking performance vary with payload, terrain, temperature, tire pressure, battery condition and operating conditions.
Customization & Ordering
SUN-CART can discuss body colors, logo branding and selected equipment to suit fleet or property requirements. Contact us with your destination, intended use and required quantity for a confirmed quotation and configuration.
Frequently Asked Questions
How many passengers does the SC-201LSV carry?
It is a true 2 seater golf cart with a 2+0 layout: one driver and one passenger in a forward-facing row.
How far can the LSV ECO 2+0 travel?
The catalog specifies up to 80 km (approximately 50 miles) at full load. Actual range depends on operating conditions and battery condition.
Can I add a custom color or company logo?
Yes. Custom body colors and logo branding can be discussed before production. Contact SUN-CART to confirm available options for your order.
Is this vehicle street legal?
Street-use, registration and equipment requirements vary by country, state and local jurisdiction. This product should not automatically be considered street legal; confirm local requirements and the final vehicle configuration before ordering for public-road use.
