4 Seater Electric Golf Cart for Resorts, Communities & Private Properties

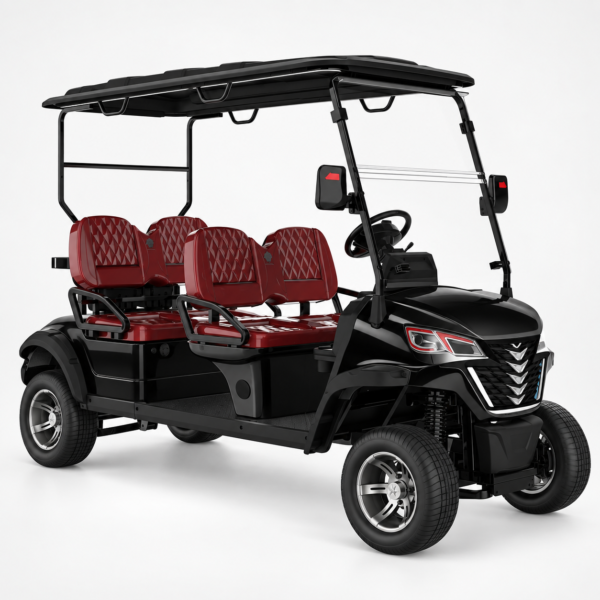

The SUN-CART LSV ECO 4+0 (SC-402LSV) is a 4-passenger electric golf cart with street tires for quiet and efficient short-distance transport. Its 4+0 seating layout is suited to resorts, golf facilities, hotels, gated communities, campuses, villas, estates and other managed properties.
The catalog-specified standard configuration combines a 48V 130Ah battery, a USA Bigturn brand, 48V/400A and a USA Bigturn brand, 48V/5kW. It is specified for up to 80 km (approximately 50 miles) of driving range at full load.
Why Choose the LSV ECO 4+0?

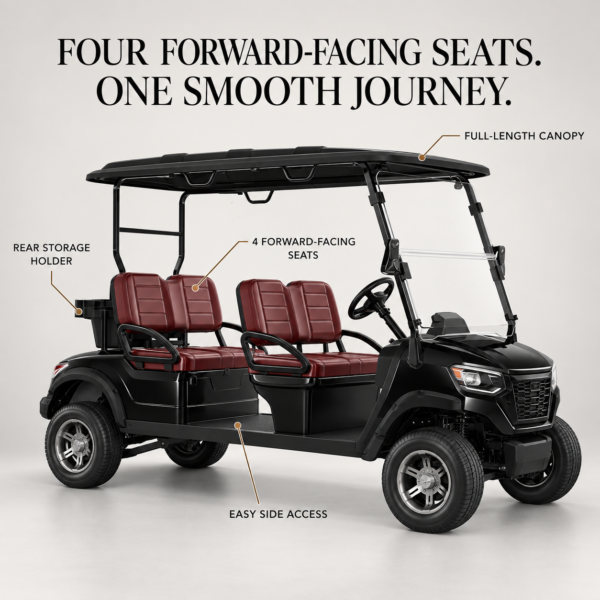

Capacity for four passengers
The 4+0 configuration is designed to transport four passengers while maintaining a practical footprint for property roads, resort grounds and other managed environments.
Lithium-Powered Electric Drive
The standard catalog configuration uses a 48V 130Ah battery with a USA Bigturn brand, 48V/5kW electric drive. Charging time is specified at 8–10 hours.
Street Tire Configuration
This LSV ECO model uses 12-inch wheels with 215/35-12 street tires, plus a hydraulic front-disc and rear-drum brake system.
SC-402LSV Technical Specifications
| Model | SC-402LSV |
|---|---|
| Series | LSV ECO Series |
| Seating Configuration | 4+0 / 4 Passengers |
| Voltage | 48V |
| Controller | USA Bigturn brand, 48V/400A |
| Motor | USA Bigturn brand, 48V/5kW |
| Battery | 48V 130Ah |
| Charging Time | 8–10 hours |
| Driving Range | Up to 80 km / 50 miles (catalog-specified full load) |
| Maximum Speed | 25–45 km/h |
| Overall Dimensions | 3200 × 1150 × 1870 mm |
| Wheelbase | 2440 mm |
| Front / Rear Track | 960 / 980 mm |
| Turning Radius | ≤ 5.5 m |
| Braking Distance | ≤ 3 m |
| Maximum Gradeability | 20% (full load) |
| Net / Gross Weight | 460 kg / 530 kg |
| Ground Clearance | 150 mm |
| Wheel Size | 12 inch |
| Tire Size | 215/35-12 street tire |
| Brake System | Hydraulic front disc + rear drum |
Performance note: Published figures refer to the catalog-specified configuration and test conditions. Actual range, speed, gradeability and braking performance vary with payload, terrain, temperature, tire pressure, battery condition and operating conditions.
Customization & Ordering
SUN-CART can discuss body colors, logo branding and selected equipment to suit fleet or property requirements. A 72V configuration is available on request; final battery, motor, controller, speed and range must be confirmed for the selected configuration.
Frequently Asked Questions
How many passengers does this model carry?
This LSV ECO model has a 4+0 layout and carries four passengers.
Can I add a custom color or company logo?
Yes. Custom body colors and logo branding can be discussed before production.
Is this vehicle street legal?
Street-use, registration and equipment requirements vary by jurisdiction. This product should not automatically be considered street legal; confirm local requirements and the final vehicle configuration before ordering for public-road use.
